When installing home AV systems or planning whole-home cabling, many users encounter the same frustrating problem:

the HDMI connector simply won't fit through the pre-installed conduit.

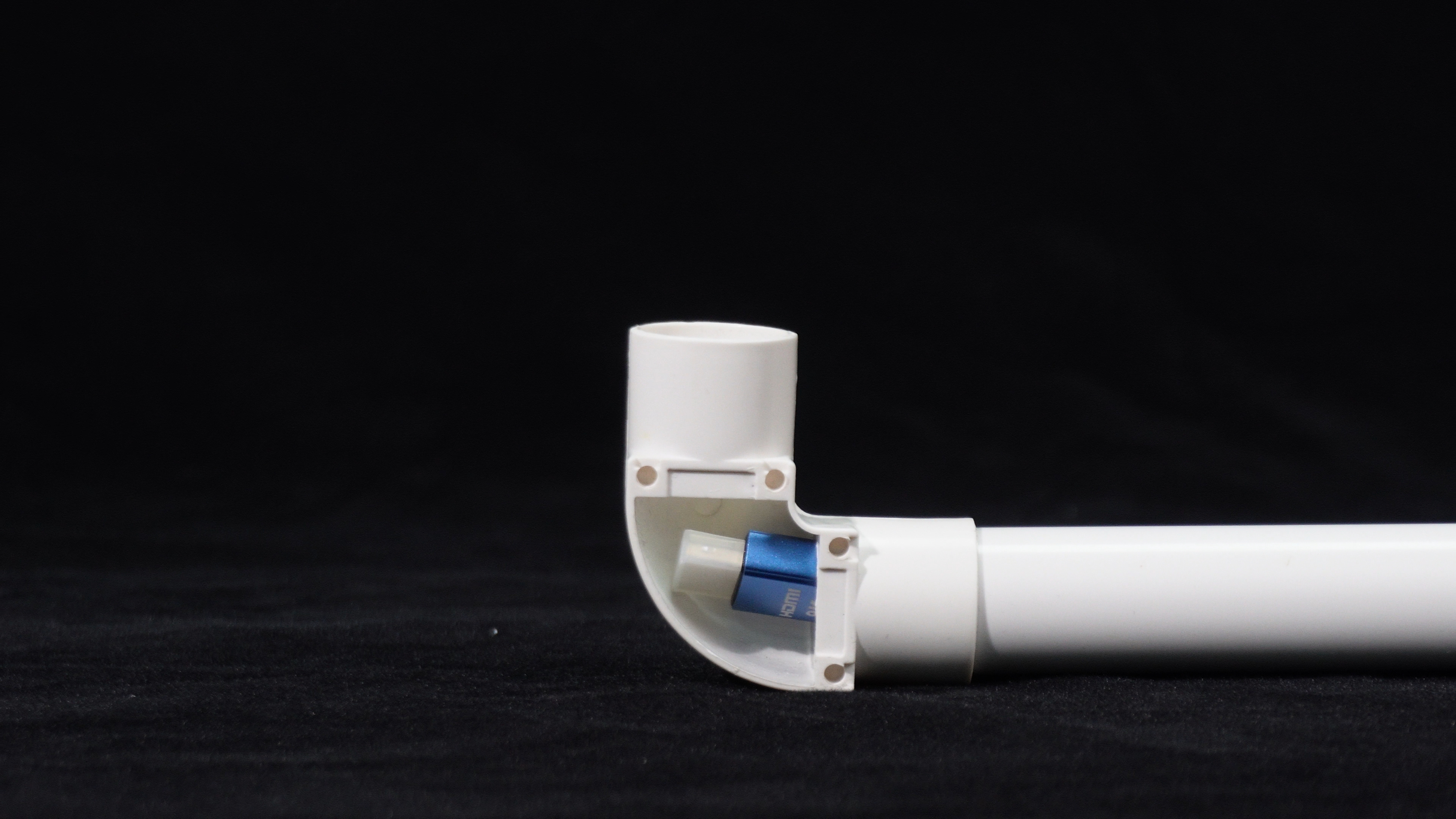

The conduit may appear large enough on paper, and a straight run might work with some effort. But once bends are involved, the connector can easily get stuck. Pulling too hard risks damaging the cable, while pulling it back out can be just as difficult. Replacing the cable and redoing the installation can also add considerable time and cost.

The large metal connector on a conventional HDMI cable is often one of the biggest obstacles in concealed cabling.

Today, we introduce a solution specifically designed for this installation challenge: Bridgee H18D Detachable Optical HDMI 2.0 Cable, featuring a single-end detachable connector that can be removed before the cable is routed through the conduit, making pre-installed cabling significantly easier.

Single-End Detachable Design for Easier Conduit Installation

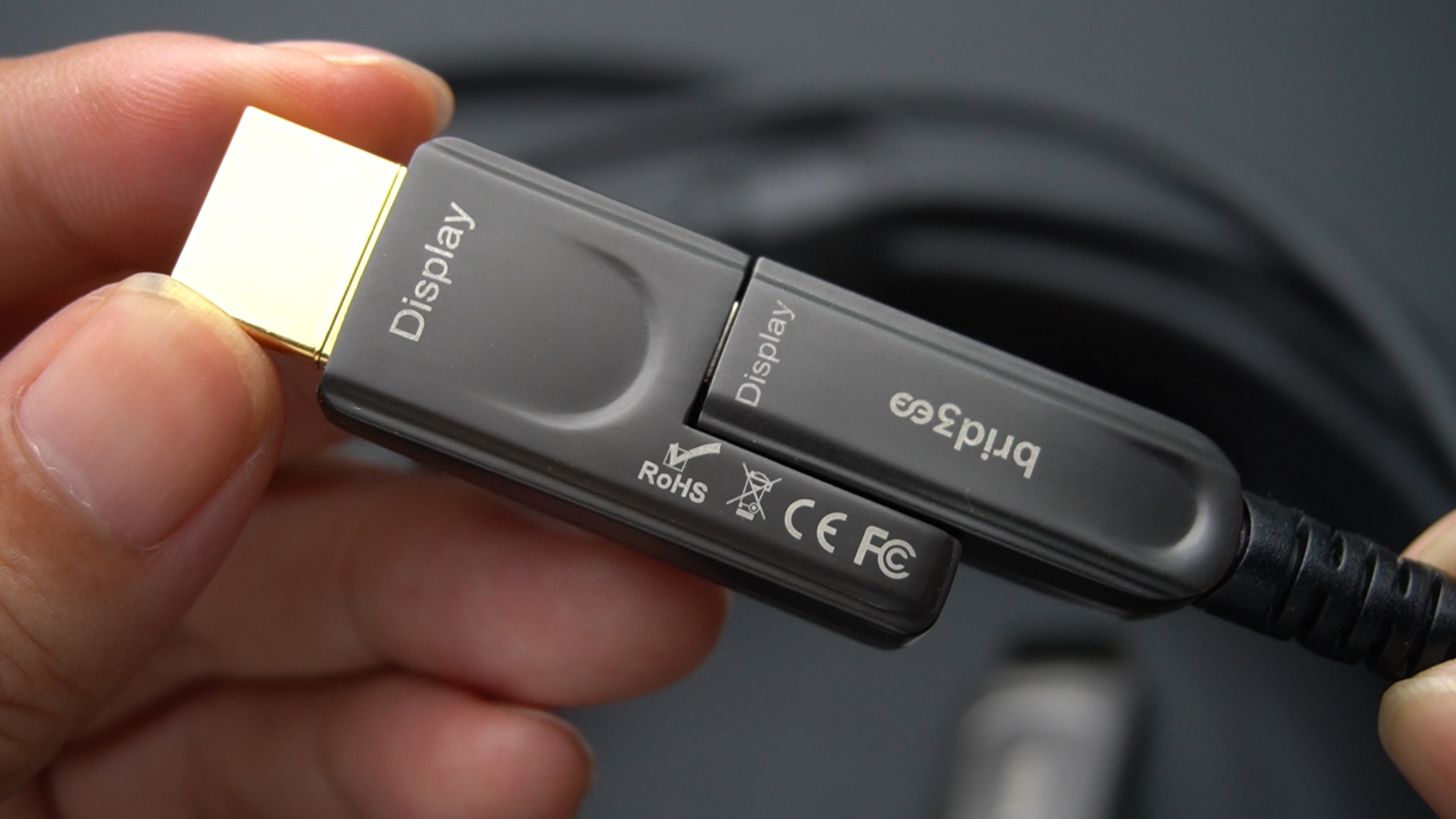

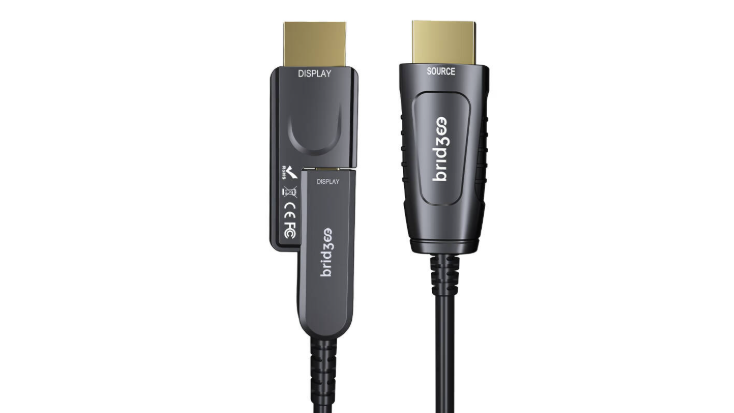

The H18D adopts a single-end detachable connector design, with a dedicated groove on the connector to facilitate removal and reassembly.

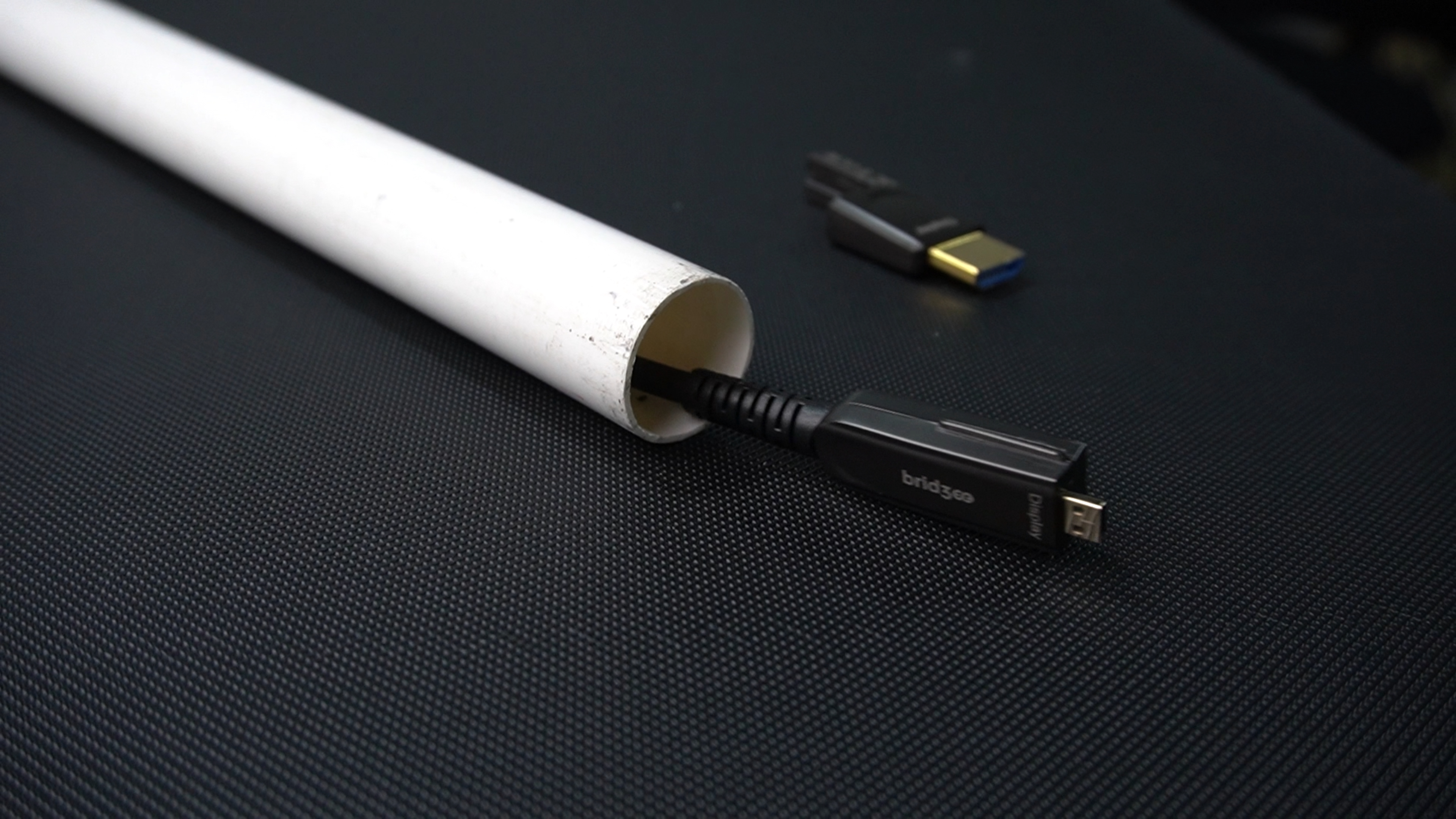

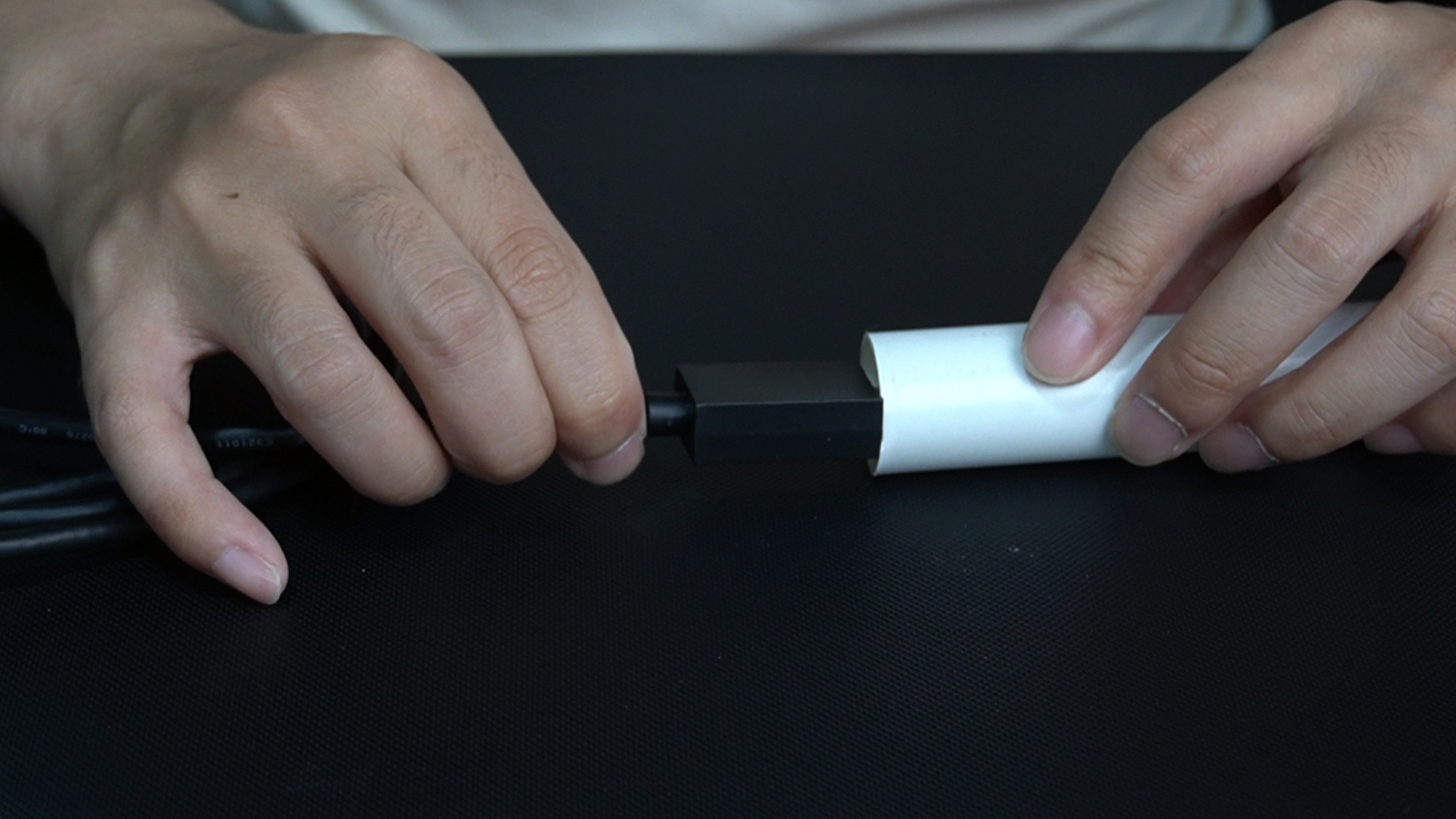

The installation process is straightforward: remove the larger connector first, route the slimmer cable end through the conduit, and once the cable is fully positioned, reinstall the connector.

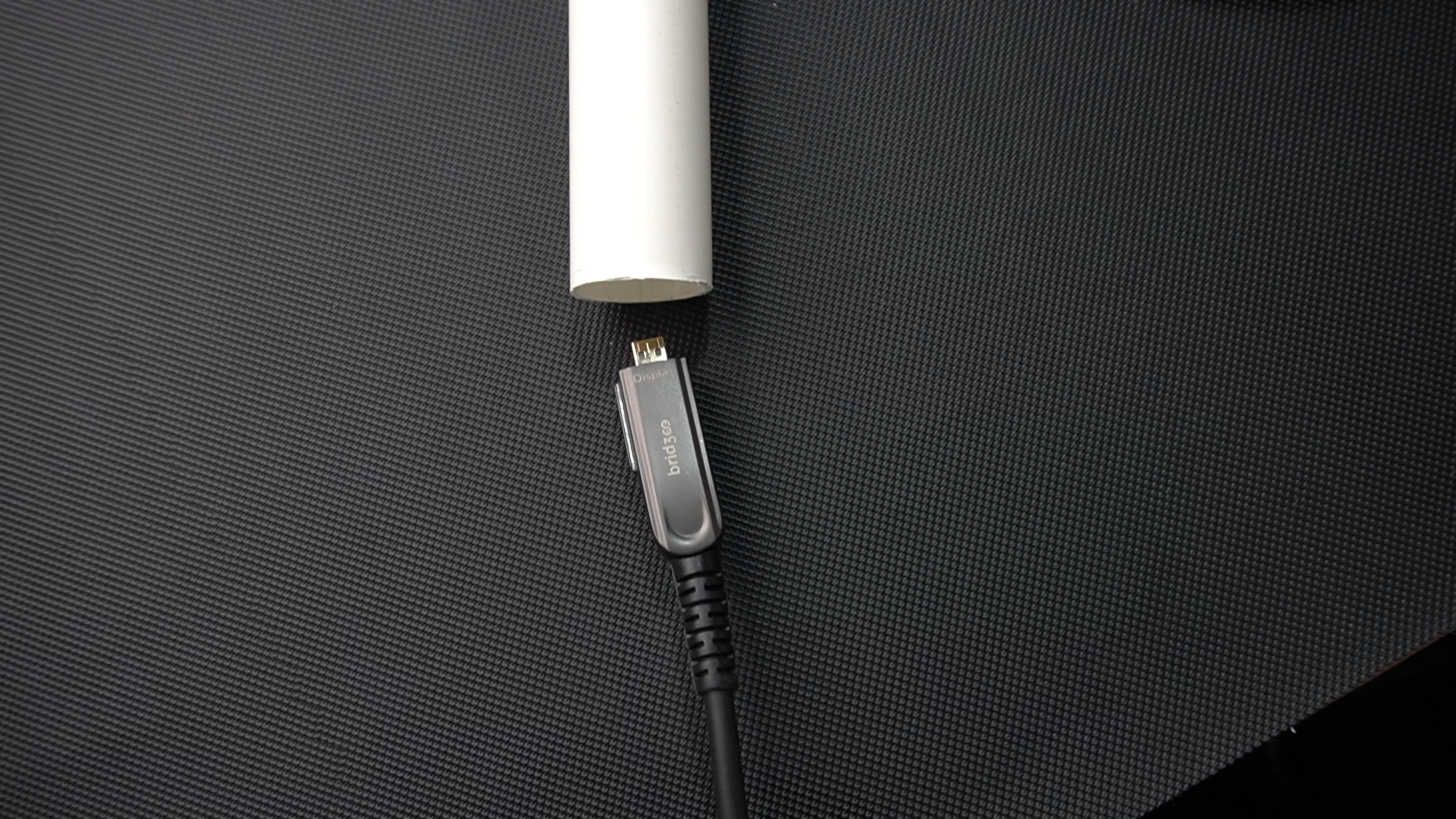

During installation, only the slim cable end needs to pass through the conduit rather than the full-size HDMI connector. This makes routing easier through narrower conduits and runs with multiple bends, reducing installation difficulty and making concealed cabling more convenient for installers.

Installation Tip

Optical HDMI cables are directional. Make sure to distinguish between the SOURCE end and the DISPLAY end, and do not connect them in reverse.

After installation, confirm that the detachable connector is securely locked in place. Avoid excessive bending or pulling during installation and use.

Optical Transmission for EMI Resistance and Stable Long-Distance Performance

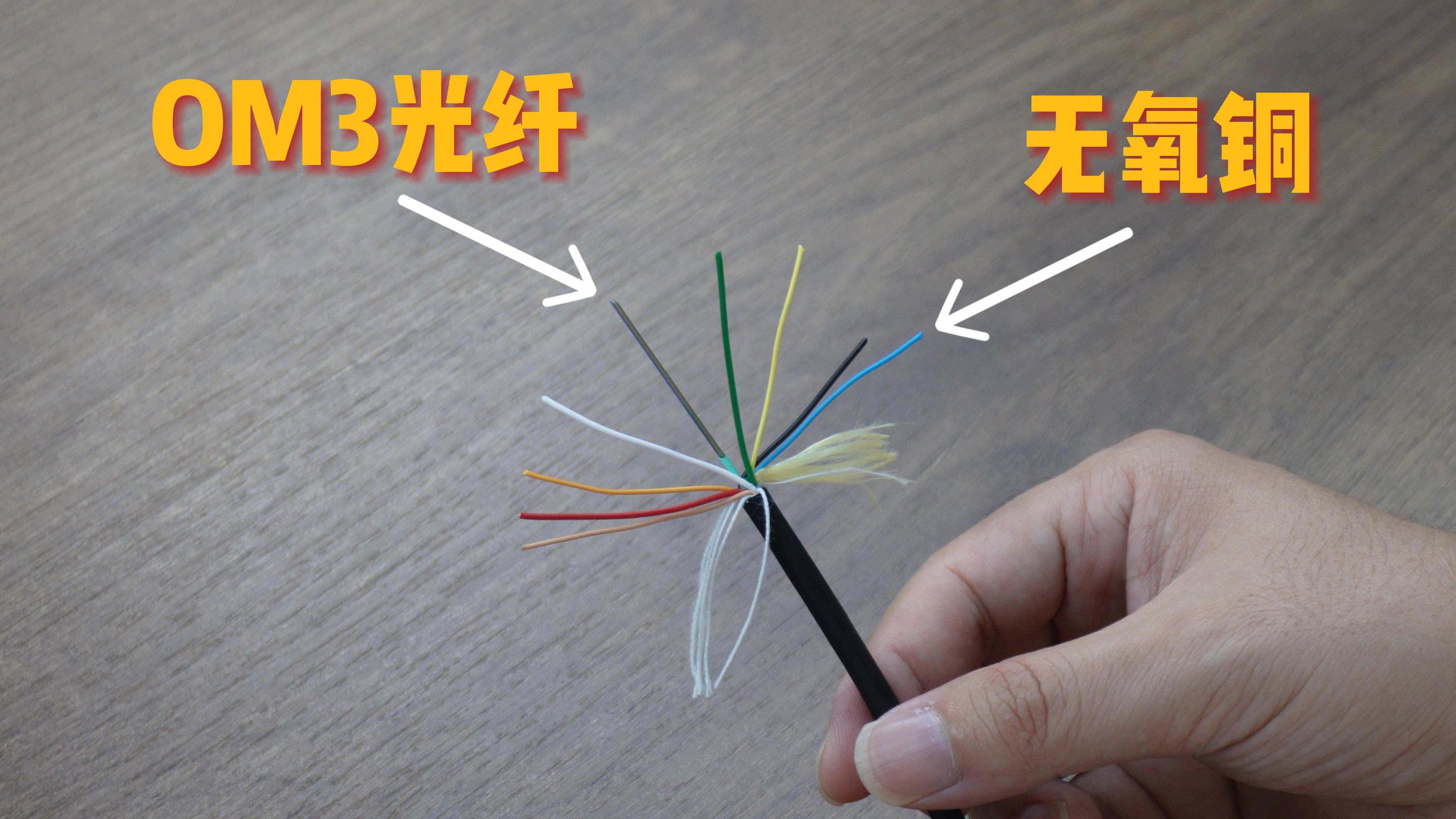

Internally, the H18D combines OM3 optical fiber with oxygen-free copper conductors.

The signal transmission process is as follows:

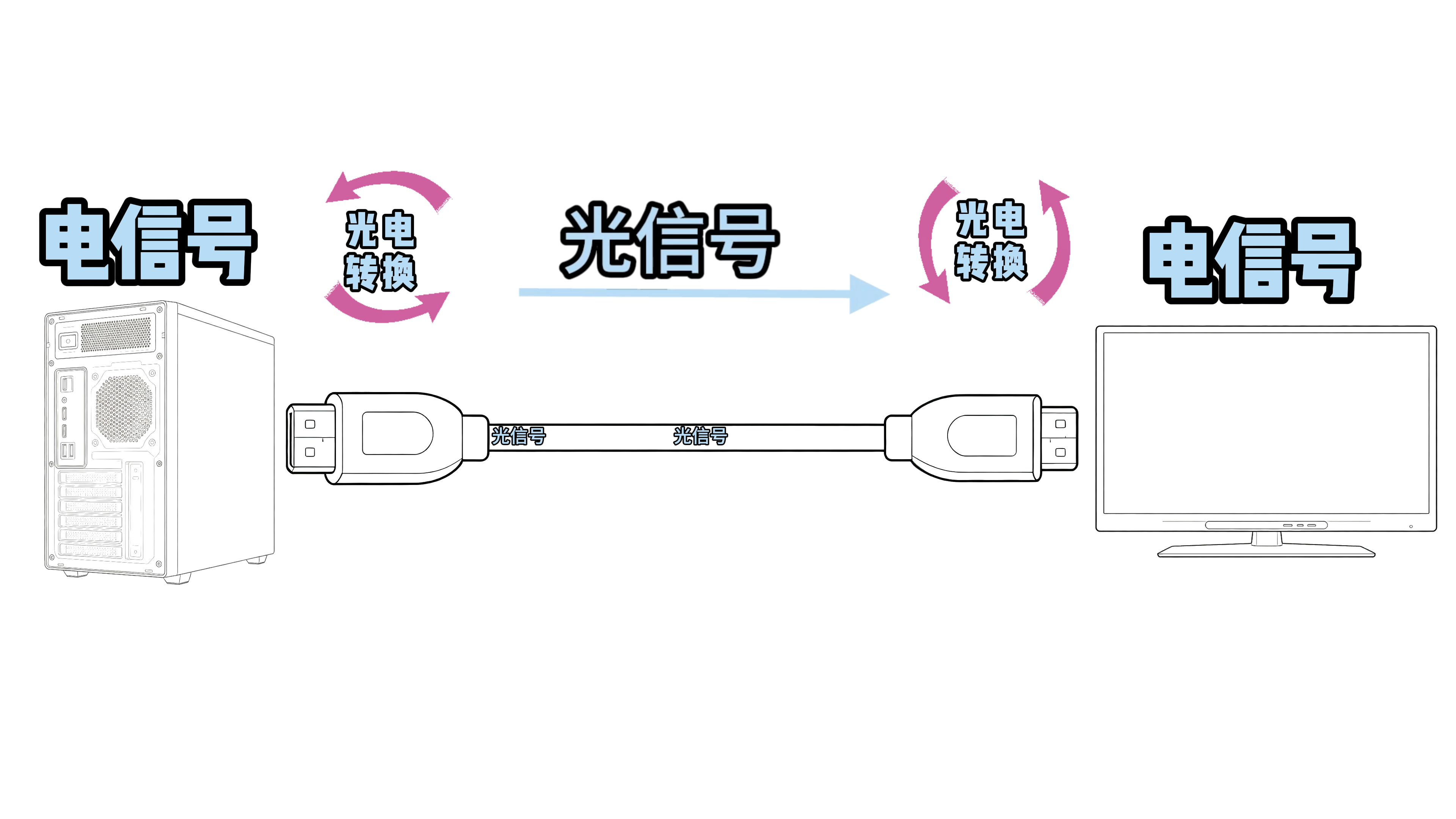

HDMI electrical signal from the source → electro-optical conversion inside the connector → long-distance transmission through optical fiber → optical-electrical conversion at the display end → electrical signal to the display device.

Optical fiber itself is non-conductive and is inherently resistant to electromagnetic interference. This makes optical HDMI particularly suitable for environments where network cables, power cables, and HDMI cables may need to share the same conduit.

For concealed installations that are difficult to access once the walls are closed, stable signal transmission and resistance to interference are especially important.

18Gbps HDMI 2.0 Performance for High-Quality AV

Easy installation is only part of the solution. Transmission performance is equally important.

The connector housing is made of zinc alloy, providing protection for the internal electro-optical conversion module while offering durability and resistance to wear.

• Up to 18Gbps bandwidth

• Supports 4K@60Hz and HDR

• Compatible with ARC audio return

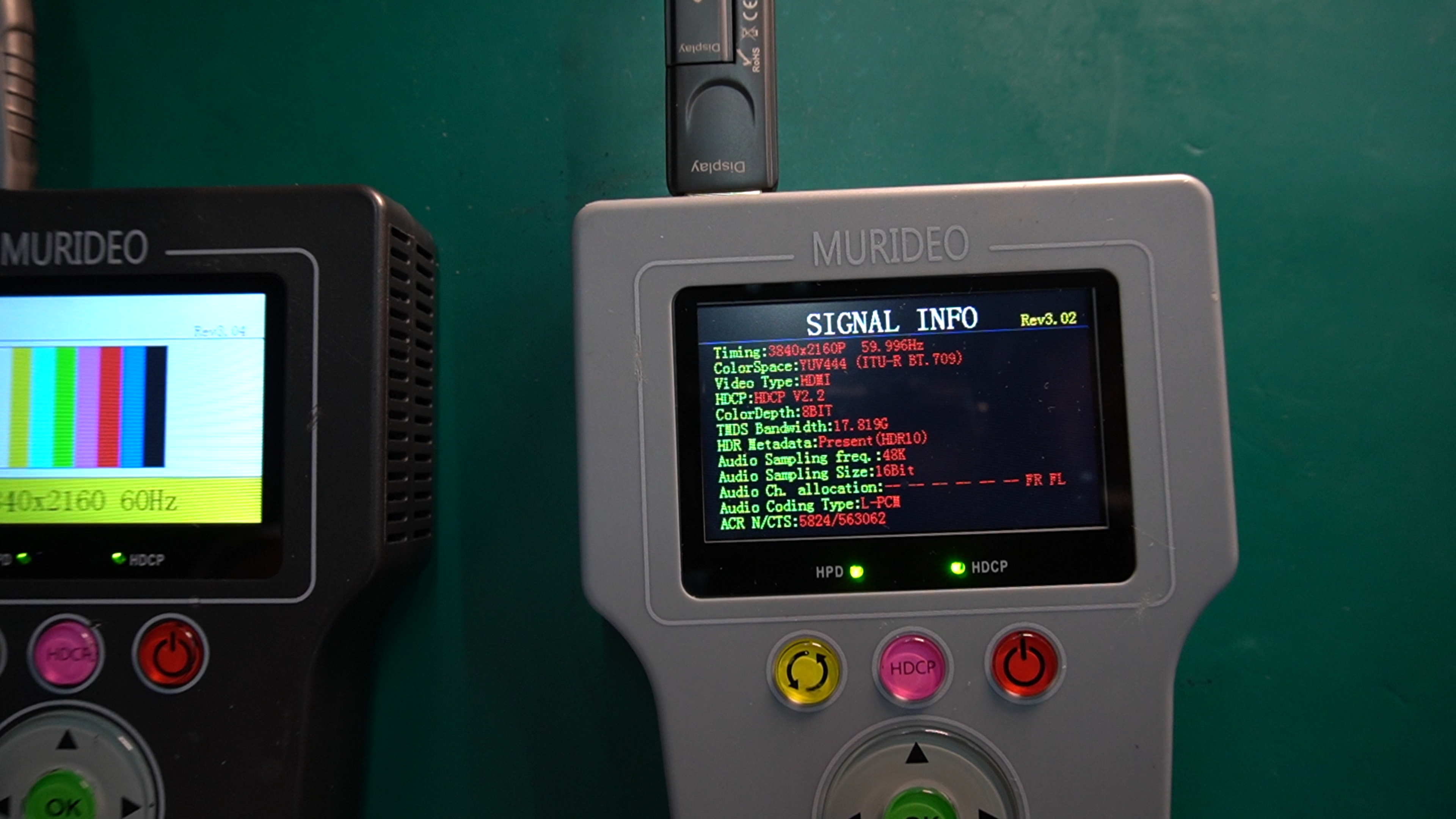

The cable has also undergone professional testing with an HDMI protocol analyzer to verify its actual transmission performance.

Suitable for TVs, projectors, and home theater equipment, the H18D is designed to support both high-quality video transmission and audio return applications.

Conclusion

For concealed cabling during home renovation, one of the biggest concerns is having to compromise either installation convenience or transmission performance.

Once conduits are concealed inside walls or ceilings, replacing an HDMI cable later can be time-consuming and costly. Choosing a cable that is easier to route, resistant to interference, and capable of meeting the required transmission specifications can help reduce potential problems down the road.

The Bridgee H18D Single-End Detachable Optical HDMI 2.0 Cable addresses one of the common challenges of traditional HDMI installation by allowing the connector to be detached during conduit routing.

Easier installation. Reliable transmission. Greater flexibility for concealed AV cabling.

Installation Tips

1. For concealed installations, optical HDMI cables can be a practical choice for long-distance applications where resistance to electromagnetic interference is important.

2. After routing a detachable cable through the conduit, make sure the connector is securely installed before powering on the system.

3. Avoid sharp bends, excessive pulling, or rough handling during installation to protect the optical fiber inside the cable.

If you are installing a home theater or projector system and are struggling with HDMI cables getting stuck in conduits, a detachable optical HDMI solution such as the Bridgee H18D is worth considering.
