Why Does the Player Work Fine When Connected Directly to the TV, but Cause Black Screens Through an AV Receiver?

Many home theater enthusiasts have encountered this situation: when the player is connected directly to the TV, 4K, HDR, and Dolby Vision all work normally. But once the signal passes through an AV receiver, black screens, flickering, or even no signal may occur.The player and TV work perfectly when connected directly, so why can adding an AV receiver cause problems?

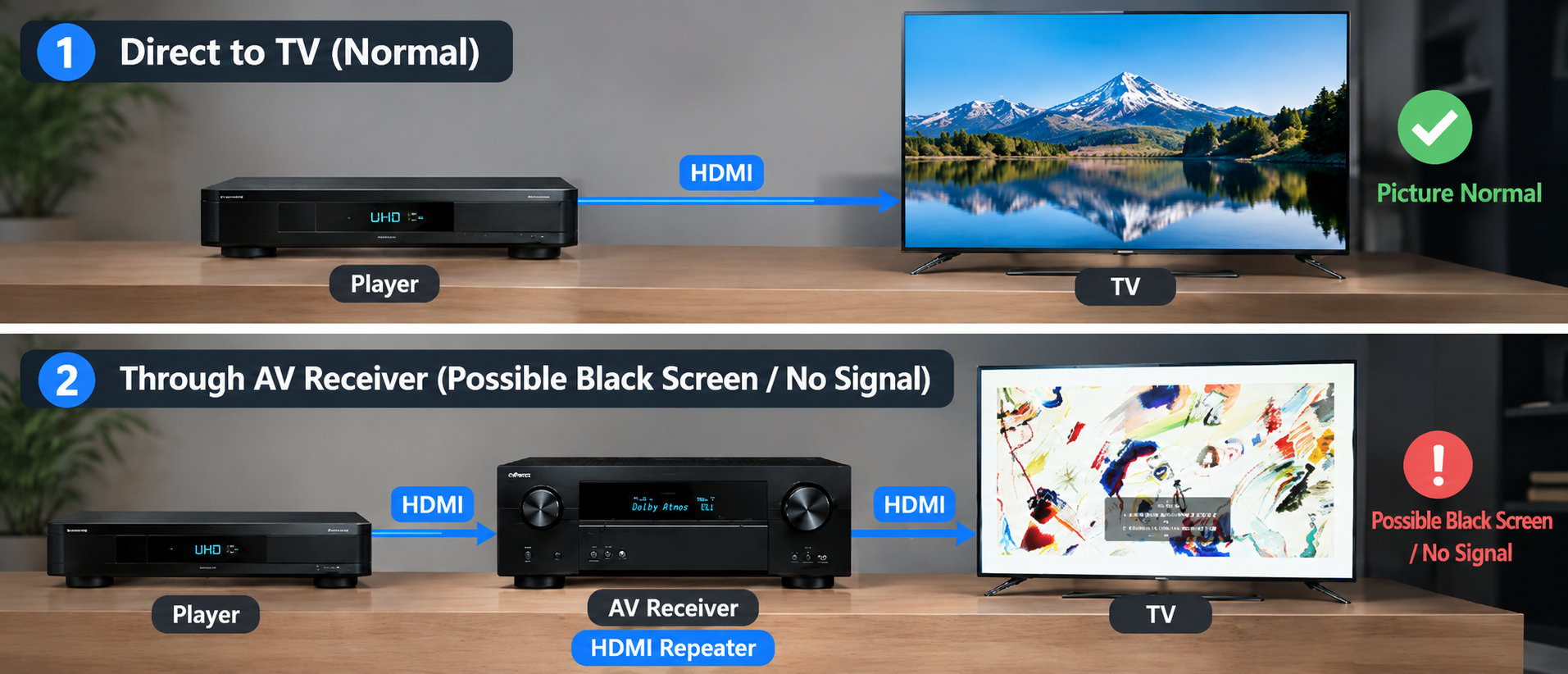

What Changes When an AV Receiver Is Added

In a home theater system, an AV receiver does more than process audio. It also acts as an HDMI signal repeater.

The connection becomes:

Player → AV Receiver → TV

At this point, the AV receiver needs to participate in HDMI negotiation.

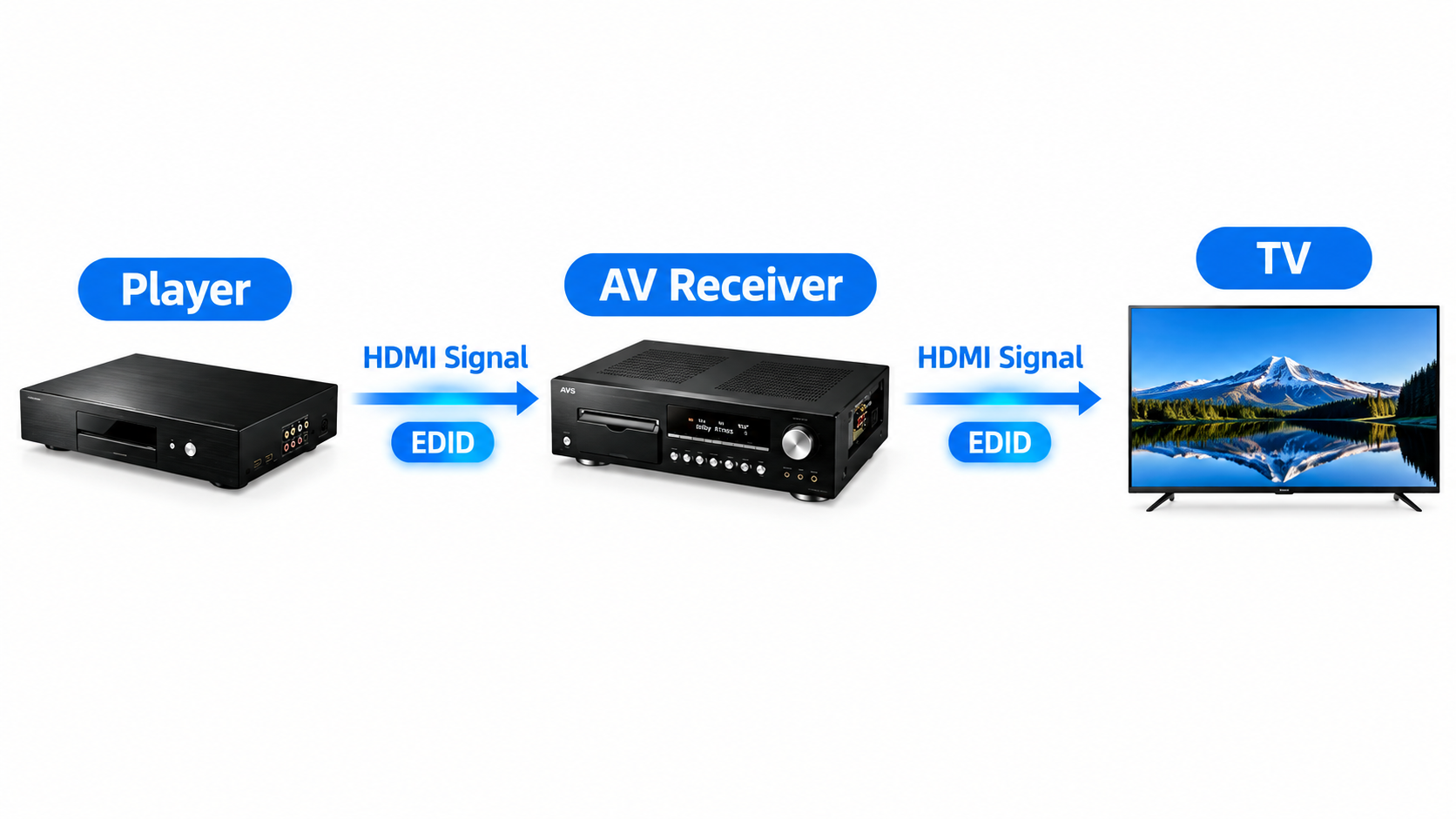

The TV provides information through EDID about the resolutions, refresh rates, HDR formats, Dolby Vision, and other capabilities it supports. HDCP content protection is also involved.

When the player is connected directly to the TV, only two devices need to negotiate with each other. Once an AV receiver is added, compatibility between three devices becomes more complex.

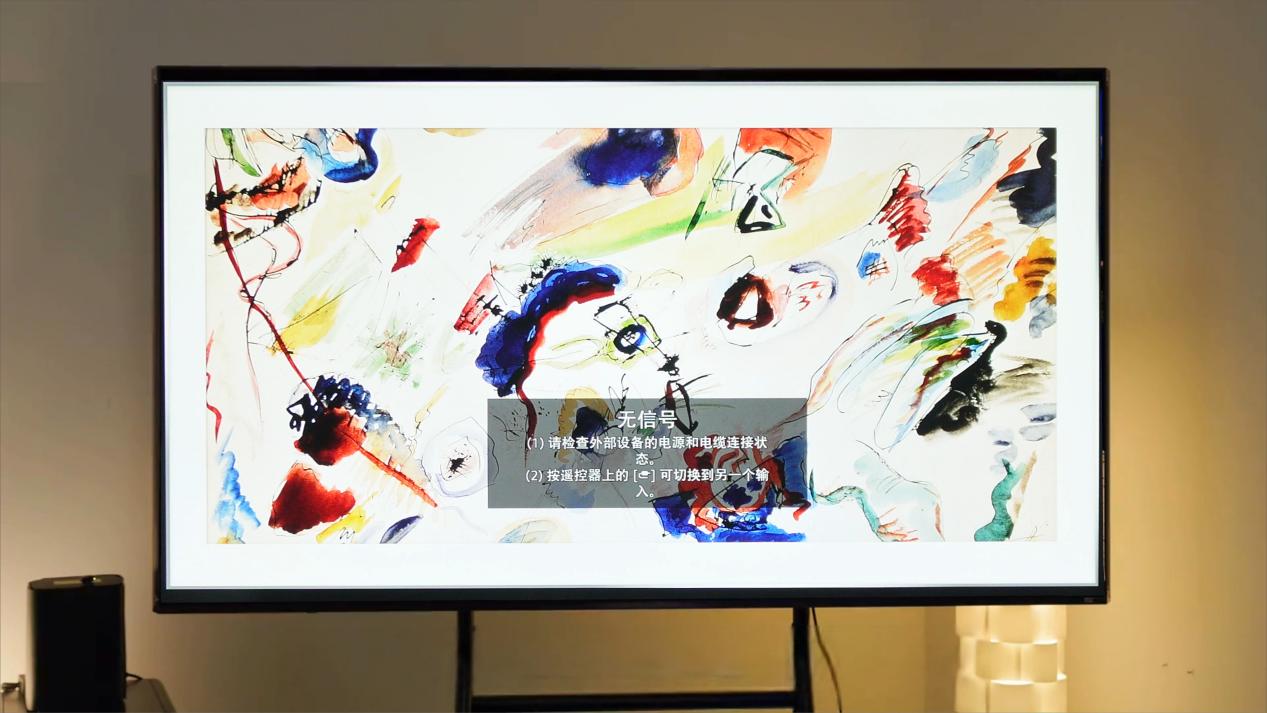

If the HDMI handshake or protocol negotiation encounters an issue, it can result in a black screen, flickering, or no signal.

It is also important to confirm whether the AV receiver itself supports the required video specifications. Some older AV receivers have limited pass-through support for high-spec formats such as 4K, HDR, or Dolby Vision.In such cases, even if the other devices are working normally, the signal may still fail to display correctly.

With Two HDMI Connections, Where Can Problems Occur?

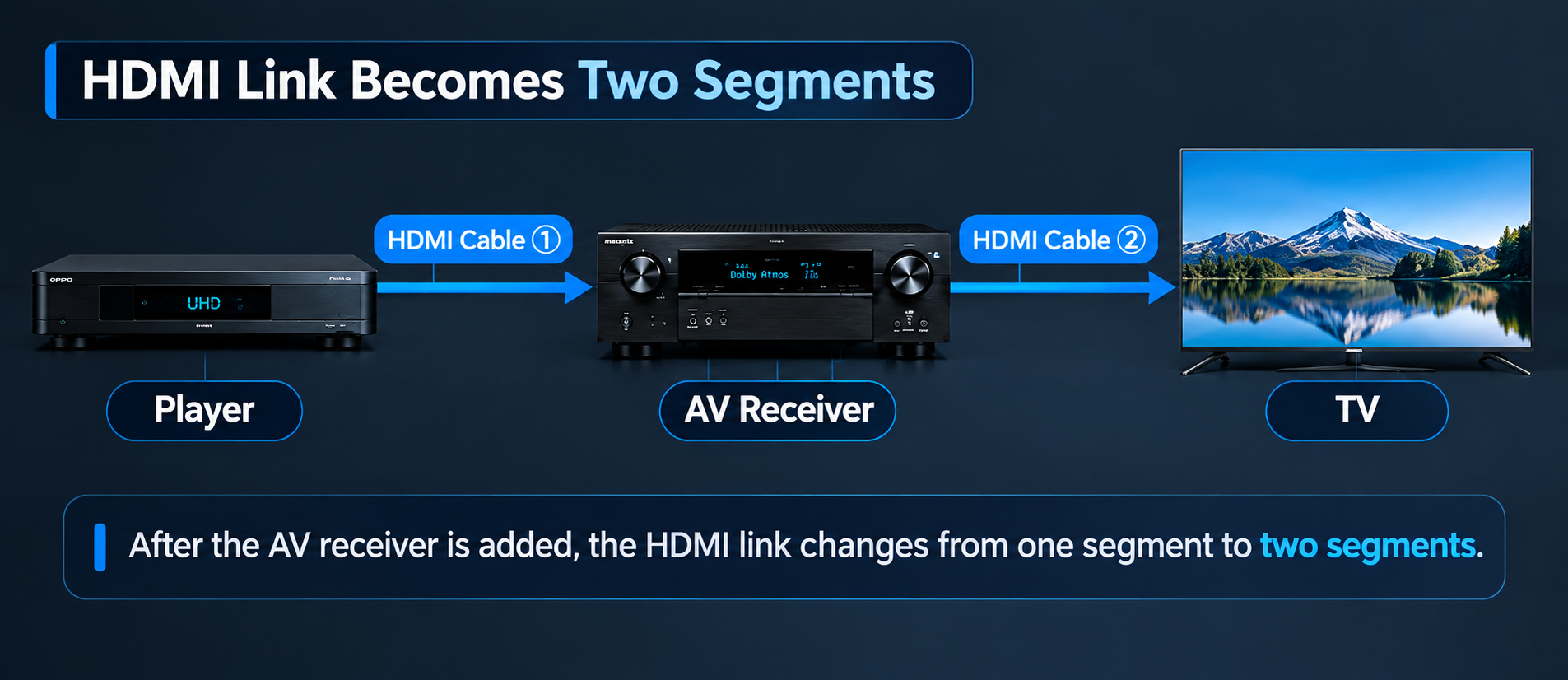

Once the signal passes through the AV receiver, the HDMI link changes from one cable to two:

If either cable becomes unstable during high-bandwidth transmission, it can affect the final image.

Some HDMI cables may work normally with standard video, but become unstable with high-bandwidth applications such as 4K HDR or high refresh rates, resulting in black screens, flickering, or intermittent signal loss.

So, getting an image on the screen does not necessarily mean the connection will remain stable under high-bandwidth conditions.

How to Troubleshoot Black Screens or No Signal Step by Step

Follow these steps in order:

① Re-establish the HDMI Connection

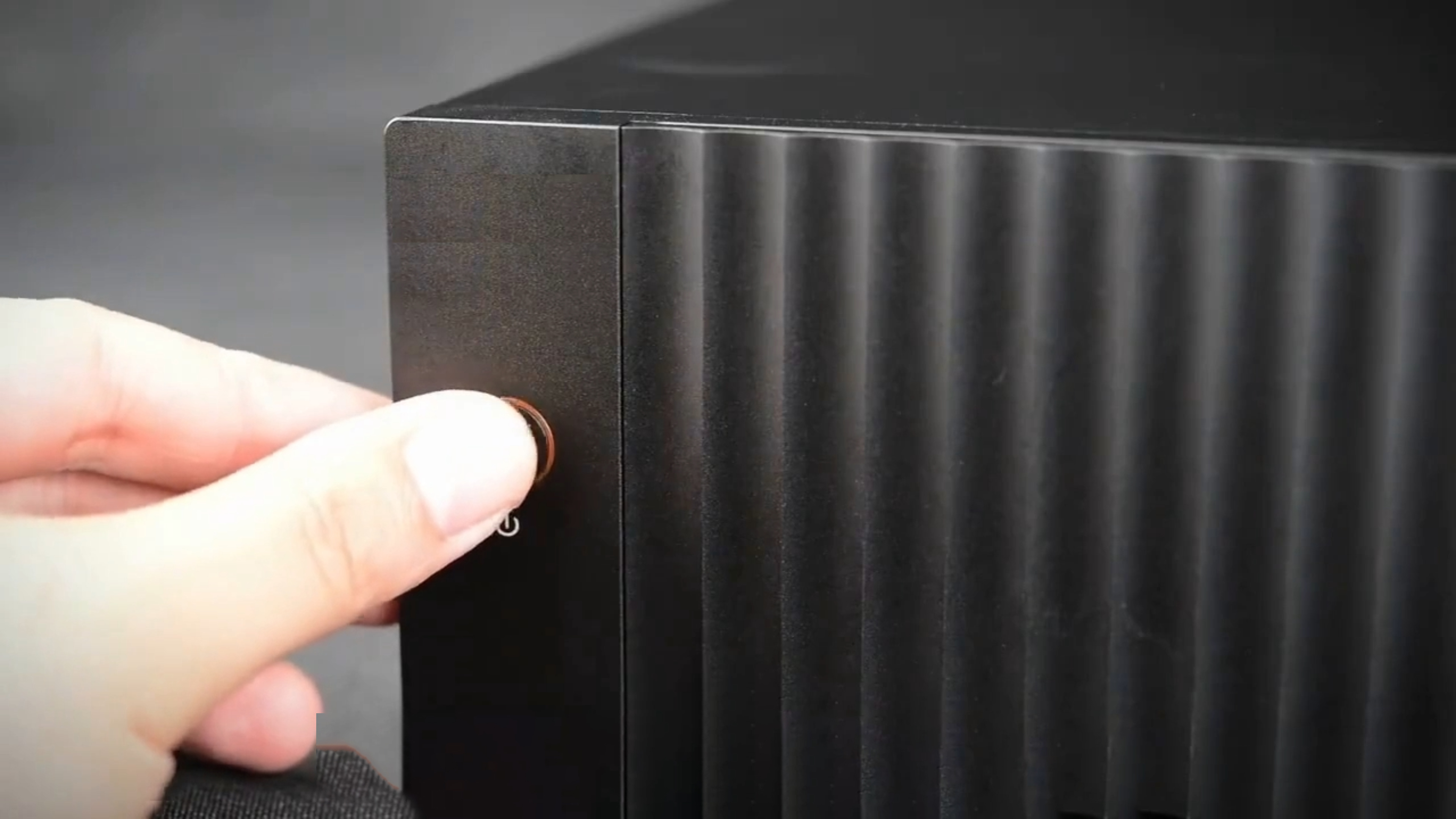

Power off the player, AV receiver, and TV.

Wait for one or two minutes, then power them back on and allow the HDMI devices to complete the handshake again.

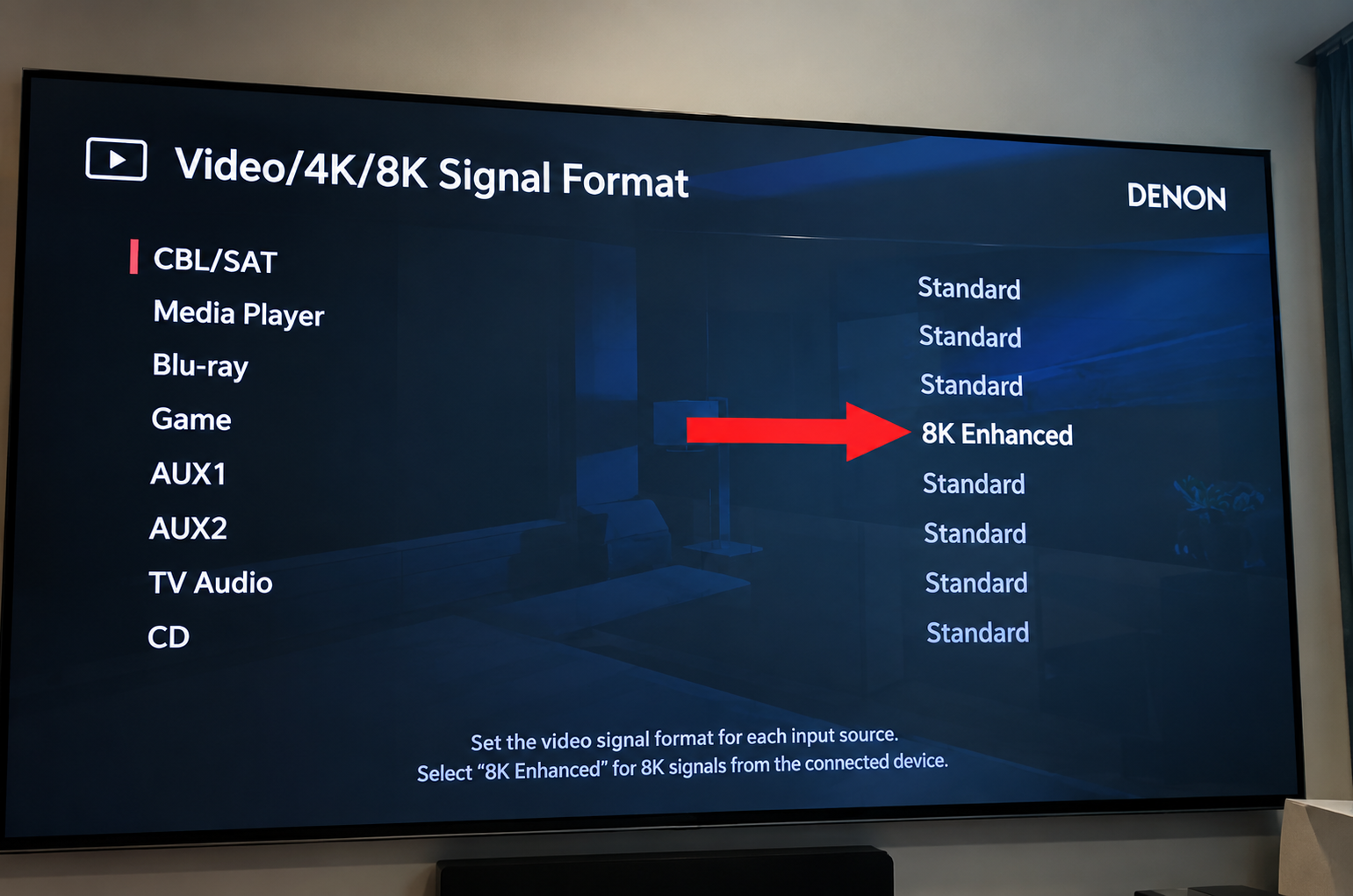

② Check the AV Receiver Settings

Make sure the corresponding HDMI input/output is set to HDMI Enhanced Mode / 8K Enhanced Mode, if available.

Also check settings such as Video Pass-Through.

③ Lower the Output Specifications

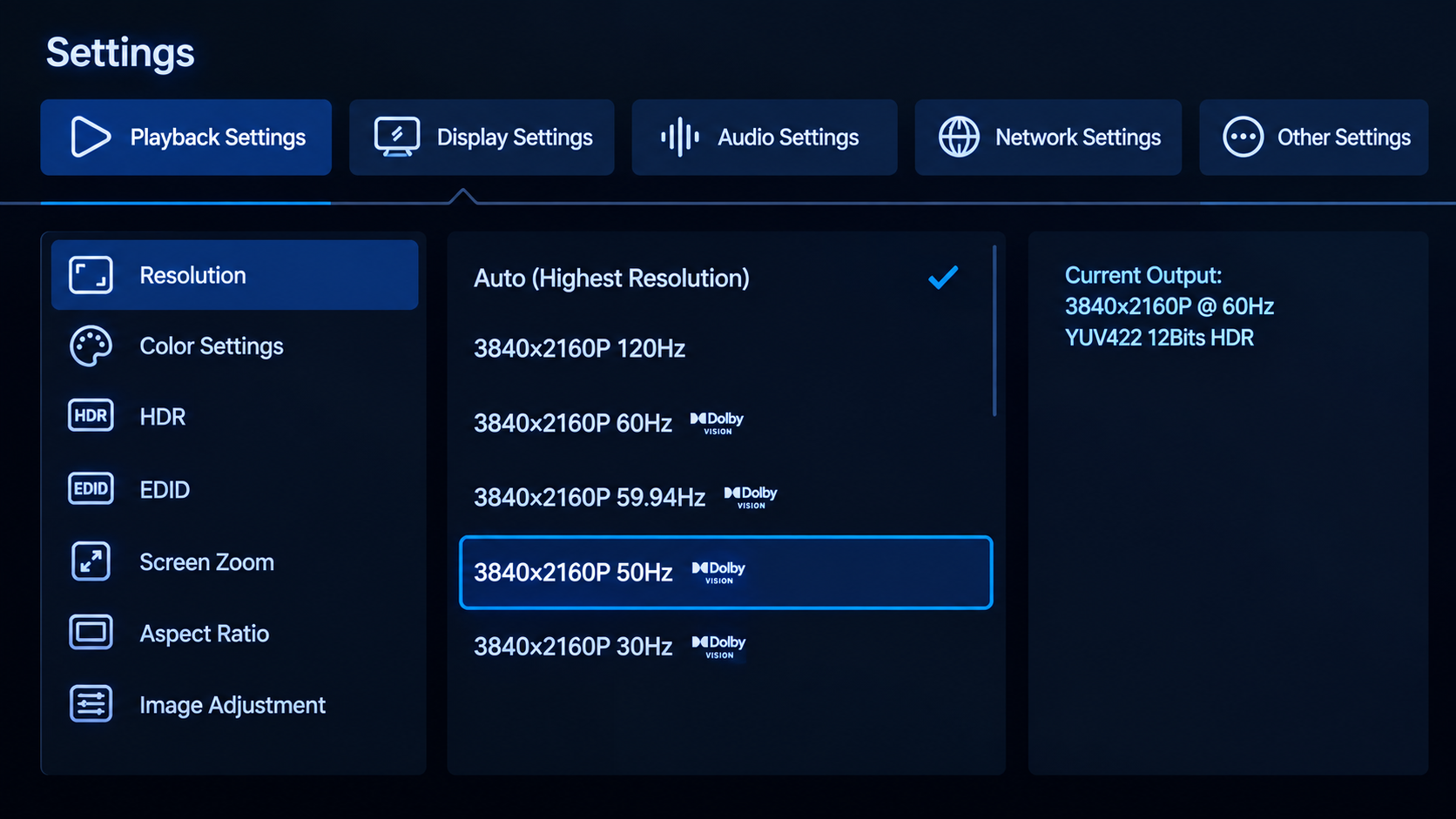

Temporarily lower the resolution or refresh rate, or disable HDR and Dolby Vision.

If the signal becomes stable after lowering these settings, pay particular attention to high-bandwidth transmission capability and device compatibility.

④ Test the HDMI Cables Separately

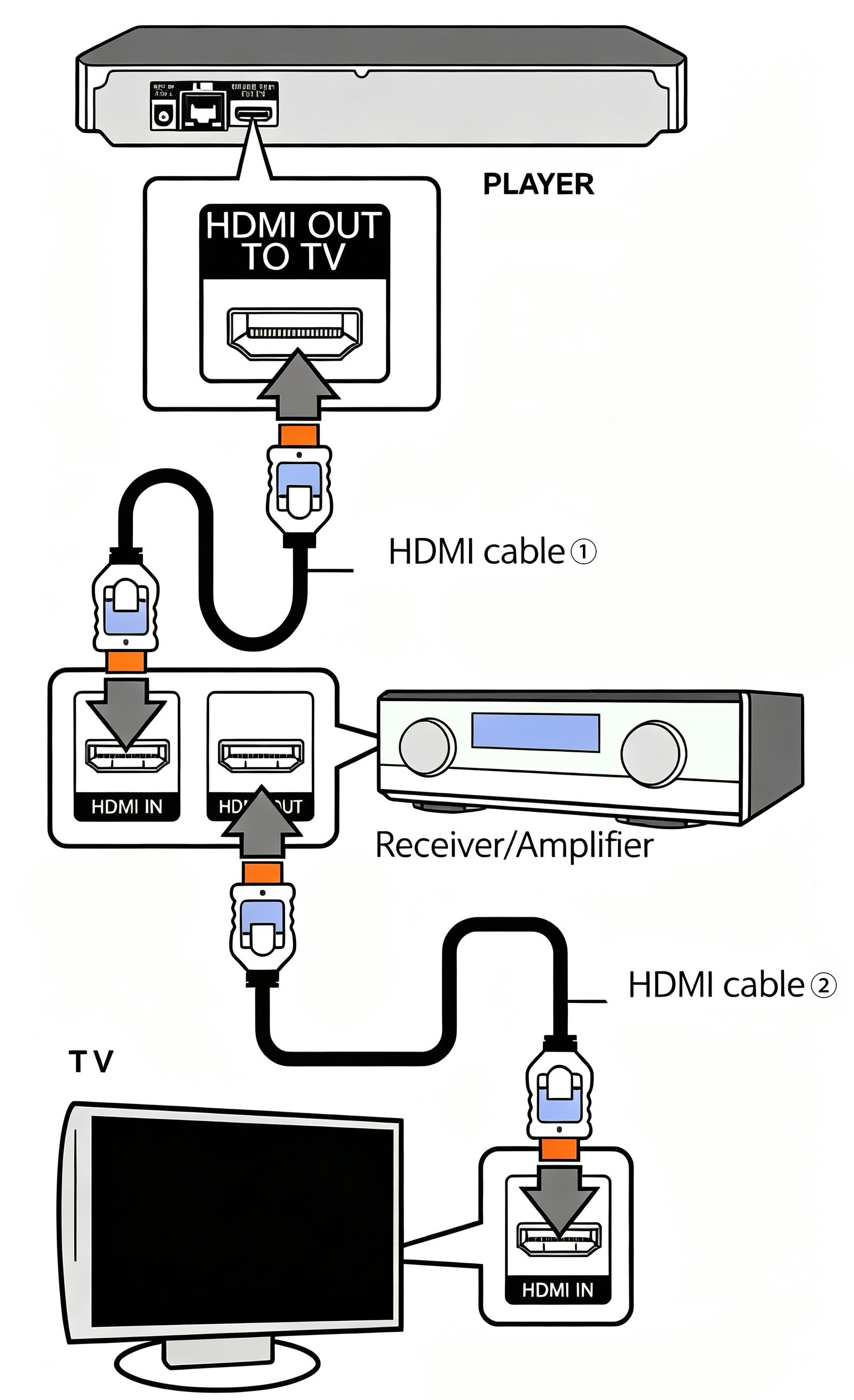

Test the two connections individually:

Player → AV Receiver
AV Receiver → TV

You can replace each section with a short HDMI cable that is known to work properly.

If the problem disappears after replacing one section, you can further determine whether that part of the connection is causing the issue.

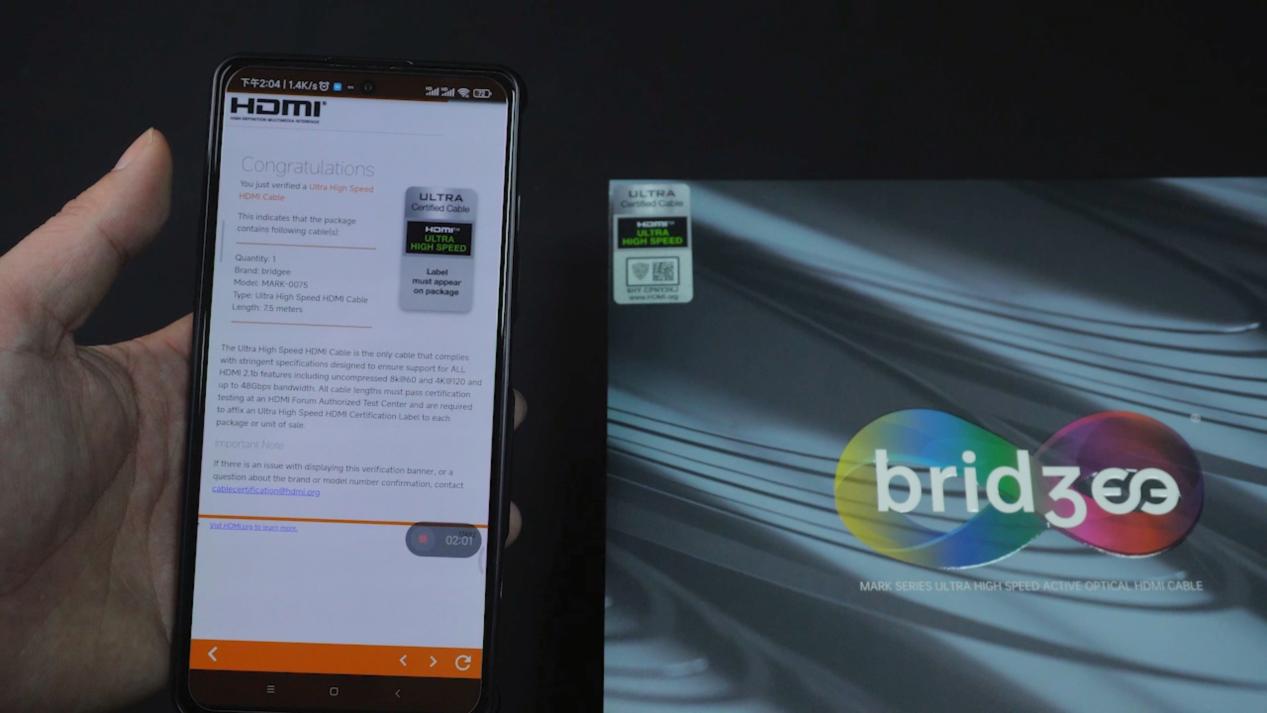

For high-bandwidth applications such as 4K HDR and high refresh rates, it is also recommended to choose HDMI cables that meet the required transmission specifications and have passed relevant certification testing.

What If the AV Receiver Does Not Support the Required Specification?

If you confirm that the AV receiver does not support the target video specification—for example, if it does not support the required Dolby Vision pass-through—simply replacing the HDMI cable will not solve the problem.

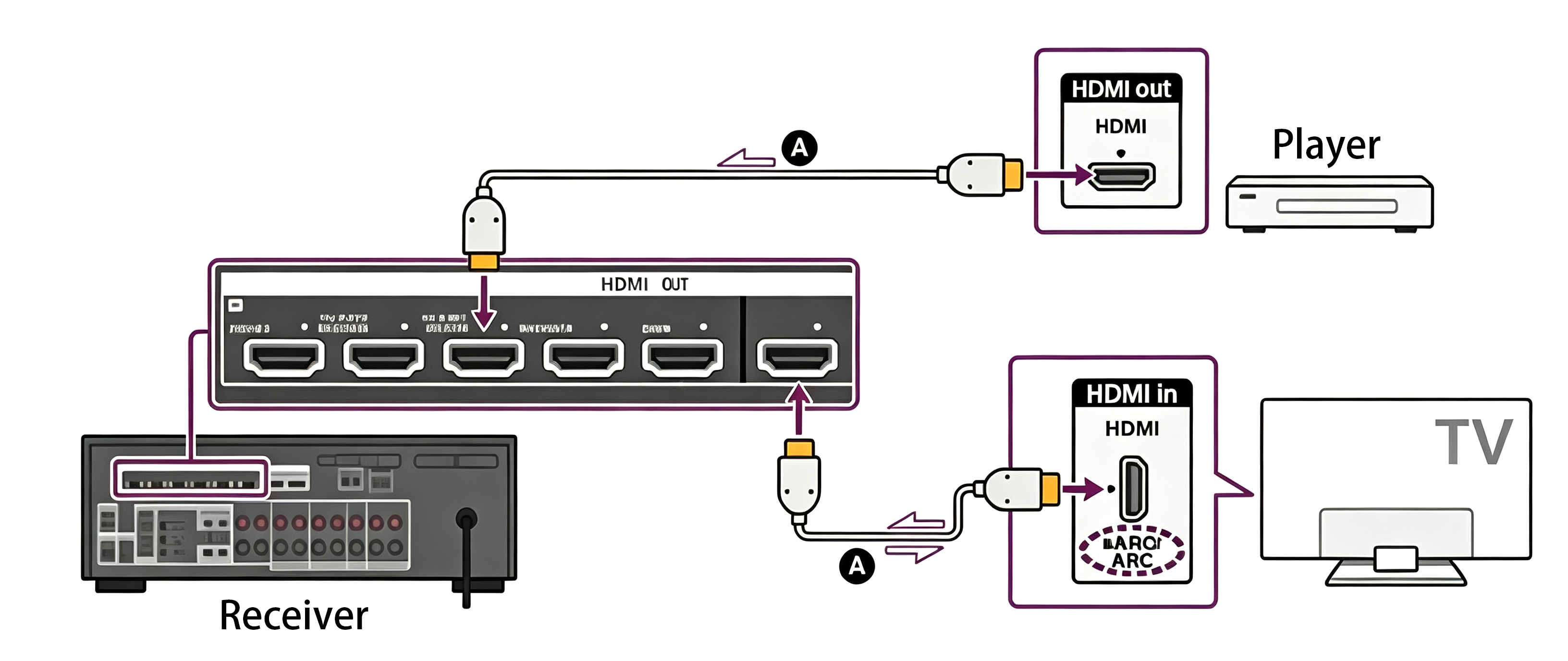

In this case, one option is to connect the player's video output directly to the TV, then use the TV's eARC connection to send audio back to the AV receiver.

This allows you to bypass the AV receiver for video transmission.

Of course, the specific solution depends on the interfaces and protocol support of the player, TV, and AV receiver.

A Home Theater System Is More Than a Single Device

When a home theater system experiences black screens, flickering, or no signal, don't check only one device.

The player, AV receiver, TV, and HDMI cables are all part of the same signal chain, and any one of them can affect overall stability.

Especially in high-bandwidth applications such as 4K, HDR, Dolby Vision, and high refresh rates, the HDMI cable's transmission capability is just as important as the device specifications and settings.

Choosing HDMI cables that meet the required transmission specifications and have passed relevant certification testing is also an important part of maintaining a stable home theater system.
